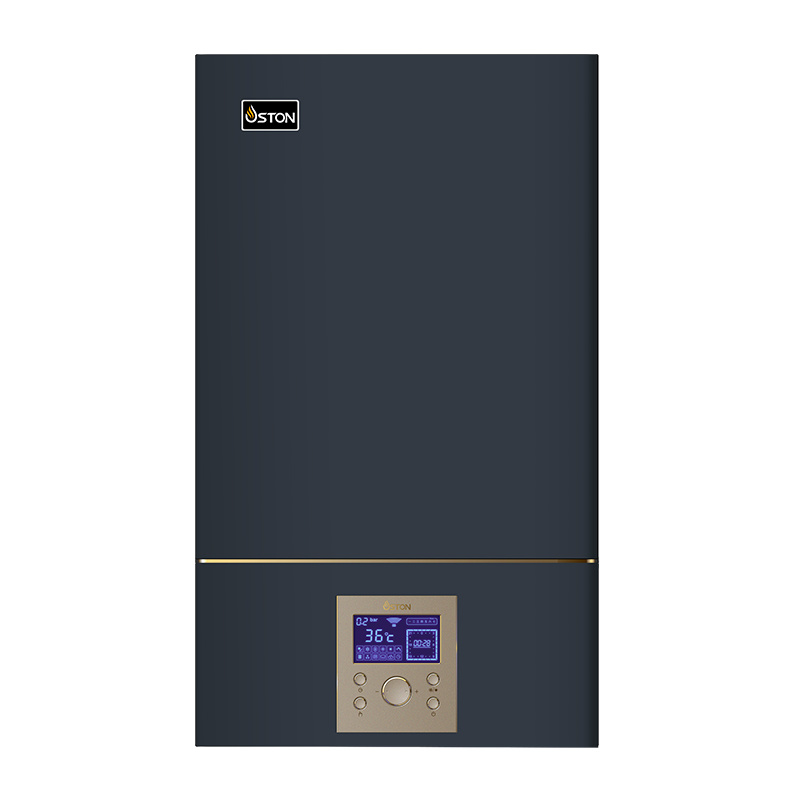

Condensing wall mounted boiler-08
Keywords:Kitchen Application
隐藏域元素占位
- Description
-
Model Unit LL1GBQ24 LL1GBQ28 LL1GBQ32 LL1GBQ36 LL1GBQ40 LL1GBQ45 LL1GBQ50 LL1GBQ55 Rated thermal load KW 24.4 28.4 32.4 36.4 40.4 45.4 50.4 55.4 Rated output power KW 24.0 28.0 32.0 36.0 40 44.6 49.5 54.5 Minimum input power KW 6.0 7.5 7.5 9.0 10.0 10.0 10.0 10.0 Minimum output power KW 6.0 7.5 7.5 9.0 10.0 10.0 10.0 10.0 Bottom voltage V/Hz Ac220 50Hz Energy efficiency rating Level Level 1 Nitrogen oxide emission level Level Level 5 Natural gas (12T) Rated pressure Pa 2000 Heating water temperature regulation range ℃ 30～80 Reference heating area ㎡ ≤140 ≤180 ≤240 ≤280 ≤320 ≤360 ≤400 ≤450 Pump head m 6 7 Expansion tank capacity L 6.5 10 18 Rated hot water production capacity (△ t=25K) kg/min 13 16 17 Heating applicable water pressure MPa 0.05～0.3 Suitable water pressure for hot water MPa 0.025～0.8 Coaxial smoke pipe mm ₵100mm *60mm ₵125mm *80mm Product size mm 740*420*325 740*420*404mm 740*420*414 Package size mm 845*490*420 840*490*510 840*490*510 Net weight/Gross weight kg 39/42 40/43 41/44 44/48 45/49 48.5/52.5 49/53 49.5/53.5
Many users seek a comfortable and warm home environment, and energy-efficient heating equipment is an ideal choice. Our fully premixed condensing wall-mounted boiler is a high-quality product that combines advanced technology with exceptional performance.
Fully premixed combustion technology for high efficiency and energy saving
The fully premixed condensing wall-mounted boiler utilizes advanced fully premixed combustion technology, mixing air and gas in a precise ratio before combustion, resulting in more complete and efficient combustion. This technology not only improves energy efficiency and reduces energy waste, but also significantly reduces harmful emissions, making it more environmentally friendly. Compared to traditional boilers, it can save significant gas costs, saving your family money.
Condensate recovery system for waste heat reuse
A unique condensate recovery system is a major highlight of this boiler. During the combustion process, it condenses water vapor in the flue gas into liquid water, recovering the latent heat and reusing this waste heat, further improving energy efficiency. Tests have shown that this system significantly improves the boiler's thermal efficiency, reaching up to approximately 108%, truly maximizing energy utilization.
Intelligent Control System, Precise Adjustment
The fully premixed condensing wall-mounted boiler is equipped with an advanced intelligent control system, allowing you to precisely adjust the boiler's operating parameters based on your needs and ambient temperature. Whether it's timer on/off, temperature setting, or power adjustment, everything is easily controlled. Furthermore, the system features automatic fault diagnosis and alarm functions. If an abnormality occurs, an alarm will be issued and a fault code will be displayed, facilitating prompt repair and resolution, ensuring safe and stable boiler operation.
Compact Design, Space-Saving
The wall-mounted design makes the boiler compact and saves space. It can be easily mounted on the wall, creating a beautiful and practical design. This design is undoubtedly a significant advantage for homes with limited space. Furthermore, the boiler's simple and clear control panel makes it easy to operate, even for the elderly.
With its high efficiency, energy-saving features, environmentally friendly intelligence, and space-saving advantages, the fully premixed condensing wall-mounted boiler is an ideal choice for modern home heating. Choosing it means choosing a more comfortable, energy-saving, and environmentally friendly lifestyle.
