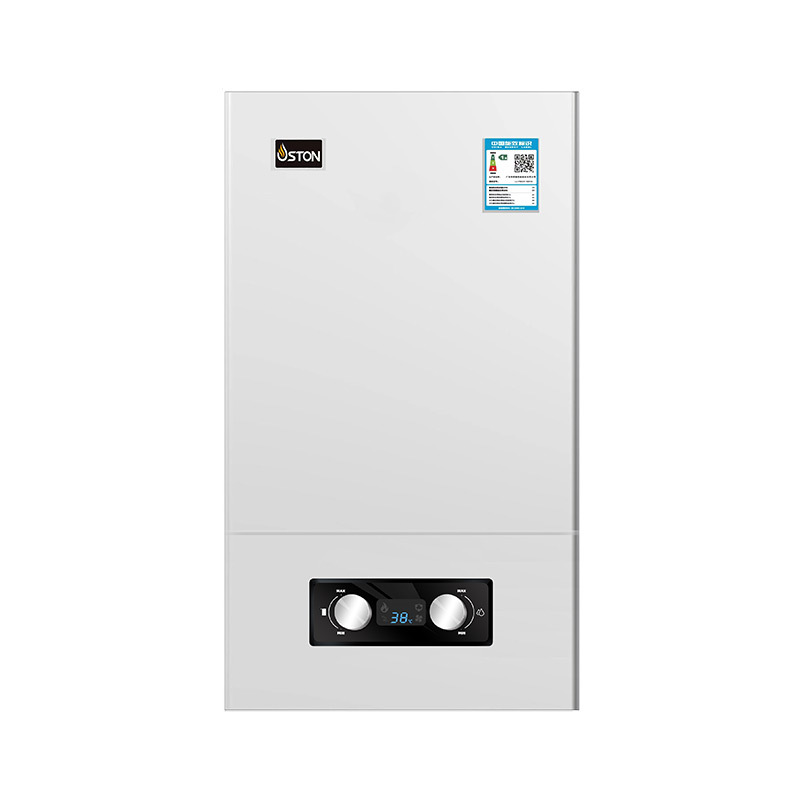

Traditional wall mounted boiler-VS25
Keywords:Kitchen Application
隐藏域元素占位
- Description
-
Model Unit L1PB14 L1PB16 L1PB18 L1PB20 L1PB24 L1PB26 L1PB28 L1PB32 L1PB36 L1PB40 Rated thermal load KW 14 16 18 20 24 26 28 32 36 40 Rated output power KW 12.6 14.4 16.2 18.0 21.6 23.2 25.2 28.6 32.4 35.8 Minimum input power KW 5.2 5.9 6.7 7.4 8.9 9.6 10.4 11.9 13.3 14.8 Minimum output power KW 4.4 5.1 5.7 6.4 7.6 8.2 8.9 10.2 11.4 12.7 Bottom voltage V/Hz Ac220 50Hz Energy efficiency rating Level Level 2 Nitrogen oxide emission level Level Level 3 Natural gas (12T) Rated pressure Pa 2000 Heating water temperature regulation range ℃ 30～80 Reference heating area ㎡ ≤60 ≤80 ≤100 ≤120 ≤140 ≤160 ≤180 ≤240 ≤280 ≤320 Pump head m 5 6 7 Expansion tank capacity L 5 6 8 10 Rated hot water production capacity (△ t=25K) kg/min 7 8 9 10 12 13 14 16 18 20 Heating applicable water pressure MPa 0.05～0.3 Suitable water pressure for hot water MPa 0.025～0.8 Coaxial smoke pipe mm ₵120mm *80mm Product size mm 660*370*260 660*370*312 740*410*310 780*540*335 Package size mm 743*433*300 743*433*360 830*470*380 880*610*440 Net weight/Gross weight kg 24/26 25/27 26/28 26.5/28.5 27/29 28/30 29/31 32/35 33/36 45/50 Wall mounted gas boilers are an efficient and convenient heating and hot water supply equipment.
1. Appearance and installation
Its small size and wall-mounted design do not occupy too much indoor space. This design allows it to be easily installed in areas such as kitchens and balconies, perfectly integrating with the home environment. The installation process is relatively simple and can be put into use after installation and commissioning by professionals.
2. Heating function
In terms of heating, wall mounted gas boilers have powerful performance. It uses advanced combustion technology to quickly convert gas into thermal energy. By connecting to the indoor heat dissipation system, such as radiators or floor heating pipes, it provides stable and uniform heat for the entire room. Its heating efficiency is high, and it can automatically adjust the operating power according to the temperature set by the user, which can not only ensure the warmth and comfort of the room, but also effectively save gas resources and reduce the cost of use.
3. Hot water supply
Wall mounted gas boilers also have excellent hot water supply functions. It can supply hot water instantly to meet the various needs of daily family life, such as bathing, washing vegetables, washing dishes, etc. The hot water supply is sufficient, and the water temperature can be adjusted according to the actual usage, ensuring that hot water of suitable temperature can be provided in different seasons and under different needs.
4. Safety performance
Safety is an important feature of wall mounted gas boilers. It is equipped with multiple safety protection devices, such as overheating protection, leakage protection, gas leak detection, etc. Once an abnormal situation occurs, the boiler will automatically stop running and sound an alarm to ensure the personal and property safety of users.
5. Energy saving and environmental protection
The product adopts a high-efficiency burner, which burns fully and reduces the emission of harmful gases, meeting the requirements of modern society for energy saving and environmental protection.
With its compact appearance, powerful functions, excellent safety performance and energy-saving and environmental protection characteristics, wall mounted gas boilers have become an ideal choice for modern home heating and hot water supply.
